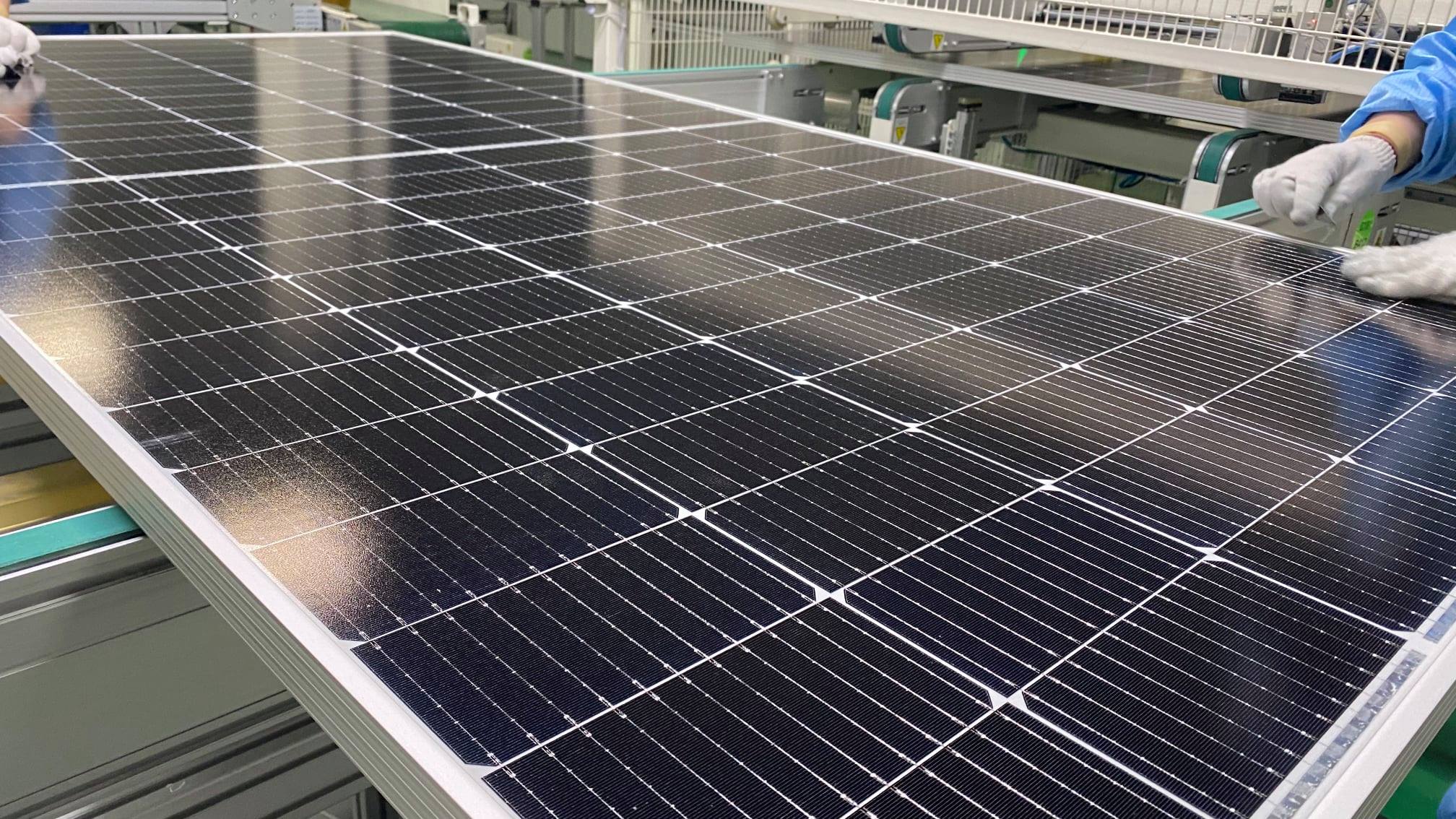

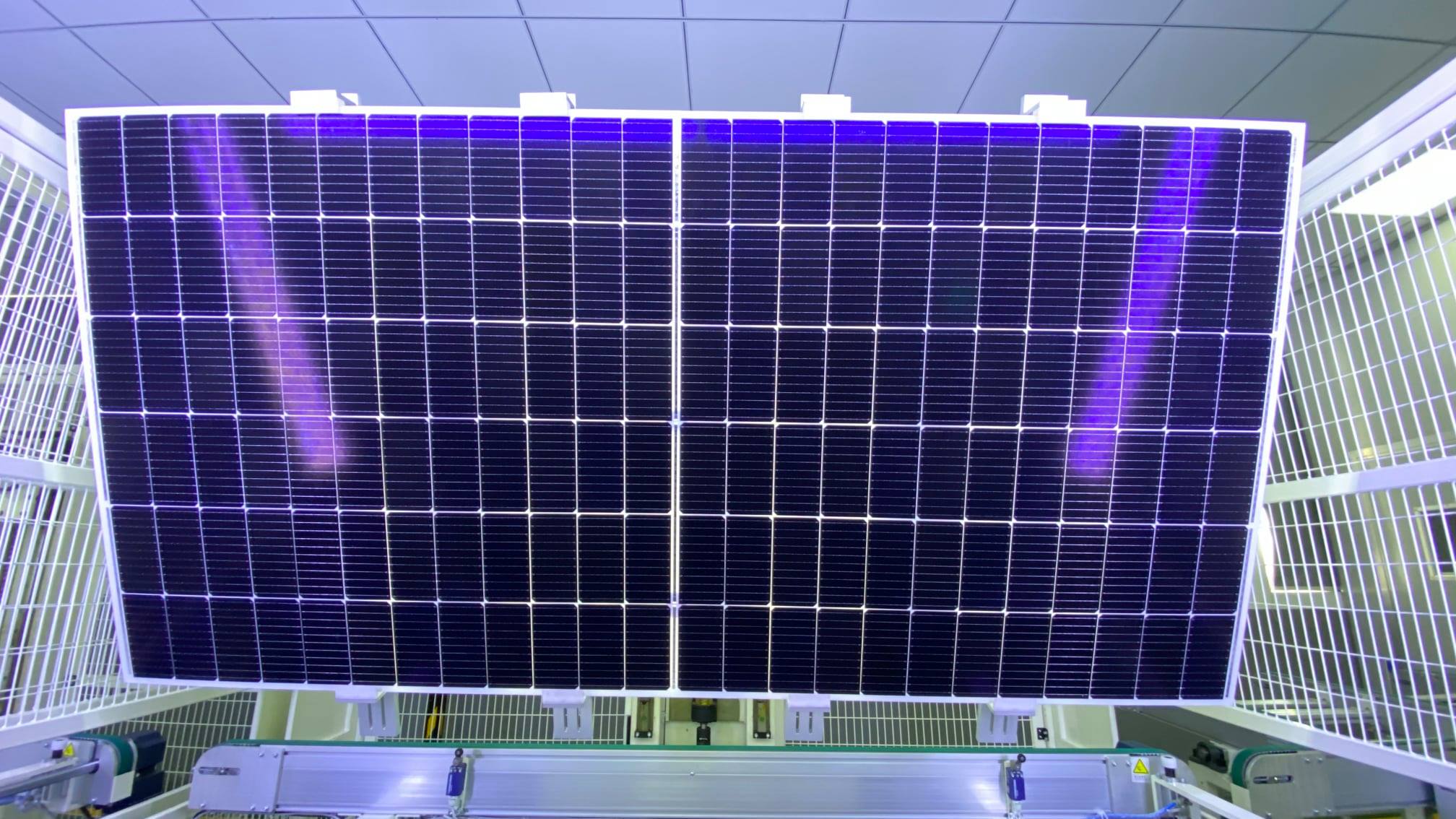

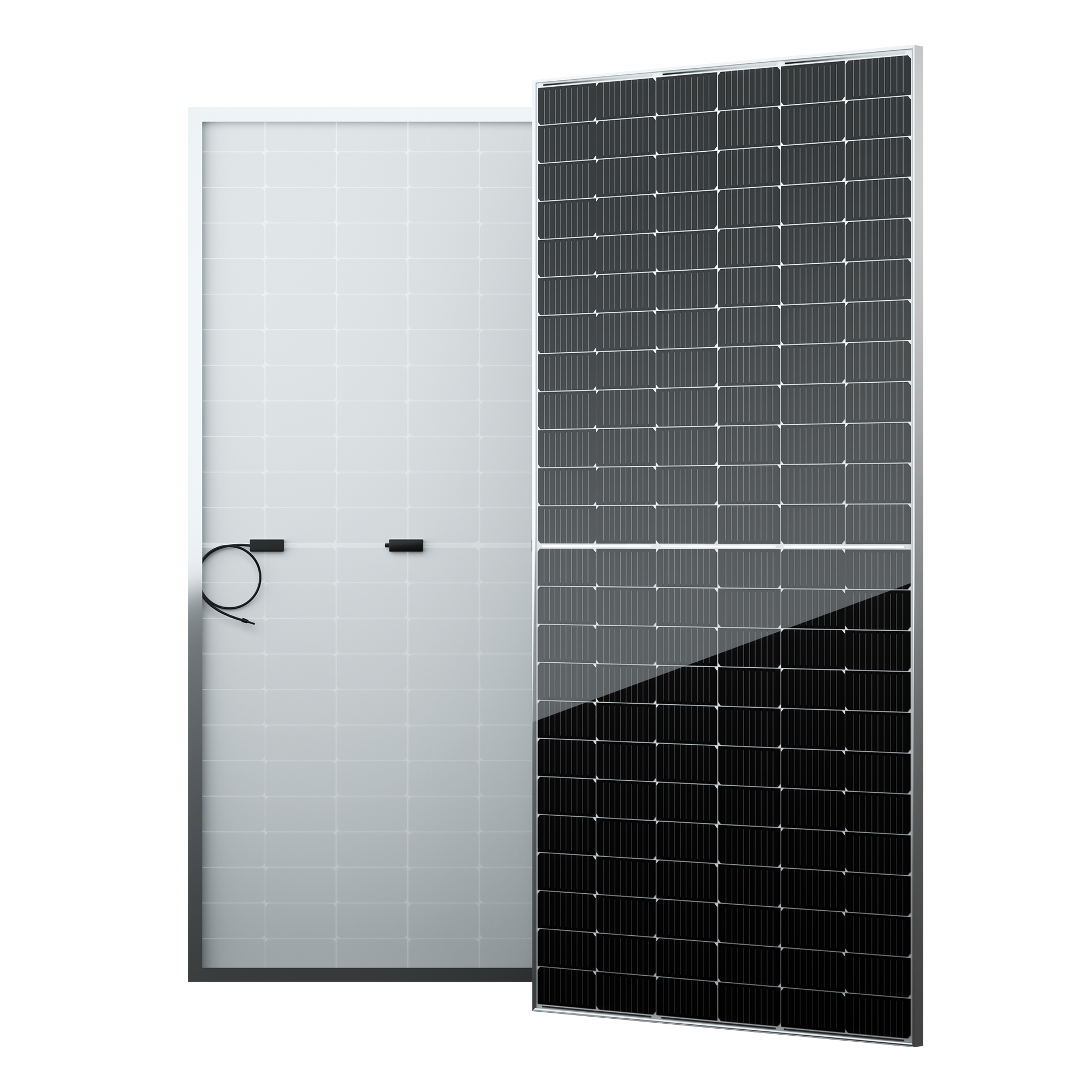

Sunpal HiMAX 550W Solar Panels

Category:

Description

Cell Orientation: 144 (6×24)
Junction Box: IP68, three diodes
Output Cable: 4mm2, ± 1300mm in length (x2 cables per panel)

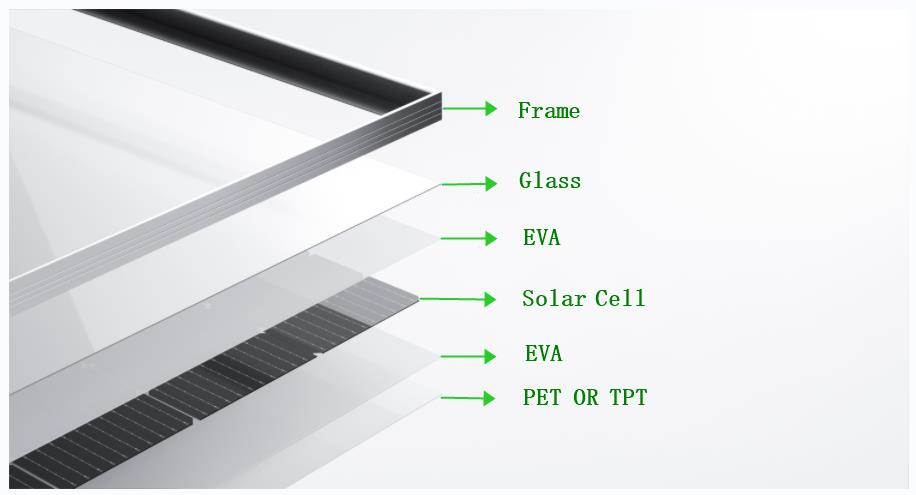

Glass: Single glass 3.2mm coated tempered glass
Frame: Anodized aluminum alloy frame
Weight: 28.6kg±3%
Dimension: 2279x1134x35mm
Packaging: 31pcs per pallet
Operational Temperature: -40°C~+85°C
Power Output Tolerance: 0~+5W
Voc & Isc Tolerance: ±3%
Max. System Voltage: DC1500V(IEC/UL)
Max. Series Fuse Rating: 25A
NOCT: 45±2°C
Safety Class: II
Fire Rating: UL type 1 or 2
Max. Static Load(Front): 5400Pa
Max. Static Load(Back): 2400Pa
